Tech Specs

Lighting

Console & Dimming

• ETC Ion 1000 control console
• 96 × 2.4 kW Unison D20E 500 µs dimmer modules

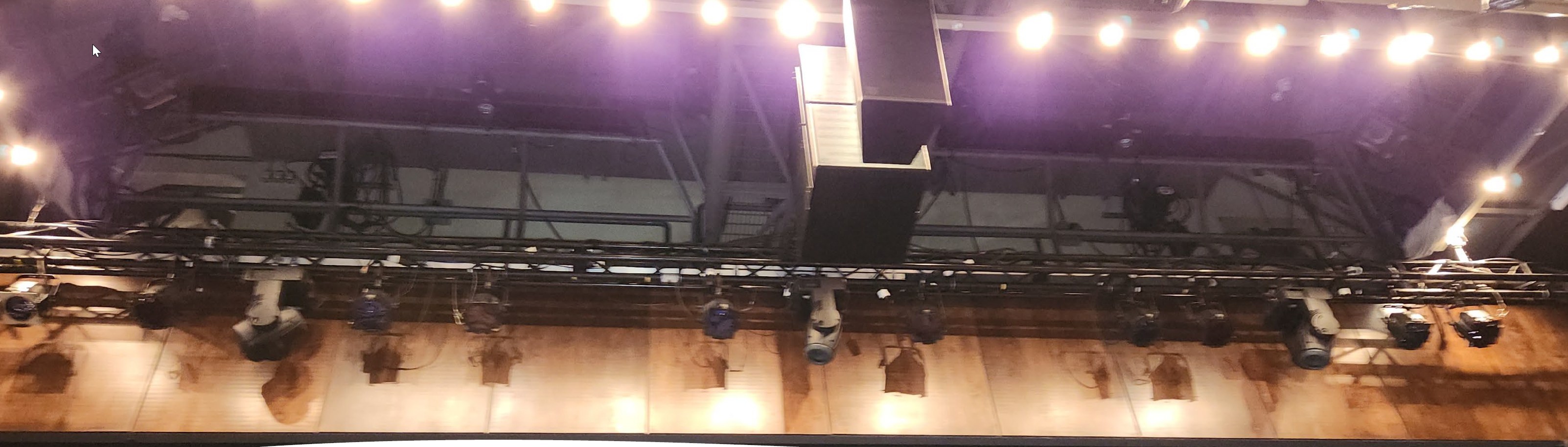

Fixtures

• 18 × ETC ColorSource PAR (LED)
• 3 × ACME Gemini (LED)
• 8 × Martin MAC 250 Entour
• 12 × ETC Source Four 25–50° 575 W
• 16 × ETC Source Four 26° 575 W
• 10 × ETC Source Four 36° 575 W
• 24 × ETC Source Four PAR EA w/ 4 lens 575 W
• 20 × Selecon Rama 6" Fresnel 750 W with barn doors
• 4 × Selecon Hui Cyc 3-cell cyc lights 1 kW
• 4 × Apollo Smartcolor Pro 7.25" scrollers

Rigging & Accessories

• 10 × floor booms — 7 ft 6" tall (6) + 4 ft tall (4)
• 16 × Altman side arms with sliding tee

Sound

Speakers

• 6 × d&b audiotechnik 10AL array boxes per side (L & R)
• 1 × d&b audiotechnik 24S-D centre channel
• 4 × d&b audiotechnik E8 fills for stage lip and balconies
• 2 × d&b audiotechnik 27A cardioid subs (flown)
• 2 × d&b audiotechnik 21S omnidirectional subs (ground)

Monitors

• 6 × d&b audiotechnik M6 monitors
• 6 × JBL PRX512MI powered monitors

Console

• DiGiCo SD9 (v20.0.2025) with D-Rack — 32 in / 16 out, positioned on stage or stage left
• FOH rack: 48 in / 16 out
• LRCS — AES2 @ 48 kHz

Video & Projection

• Panasonic PT-RQ25KU 4K large-venue projector
• 25-foot projection screen

Microphones

• 4 × Shure ULXP24 / Beta 58 wireless — handheld or beltpack
• 4 × Shure QLXD / H50 Beta 58 wireless — handheld or beltpack
• 6 × Shure Beta 58A
• 6 × Shure Beta 57A
• 2 × Electro-Voice 510
• 3 × AKG C518
• 1 × AKG D112
• 2 × AKG C430
• 1 × Shure Beta 52A
• 4 × Sennheiser e904
• 4 × BSS AR-133 active DIs

Microphone Stands

• 10 × tall boom stands
• 6 × short boom stands
• 2 × extra-tall boom stands
• 2 × weighted-base straight stands
• 2 × horseshoe-base stands

Playback

• 2 × Denon DN-C615 single CD / MP3 players
• 1 × Marantz CDR632 CD recorder

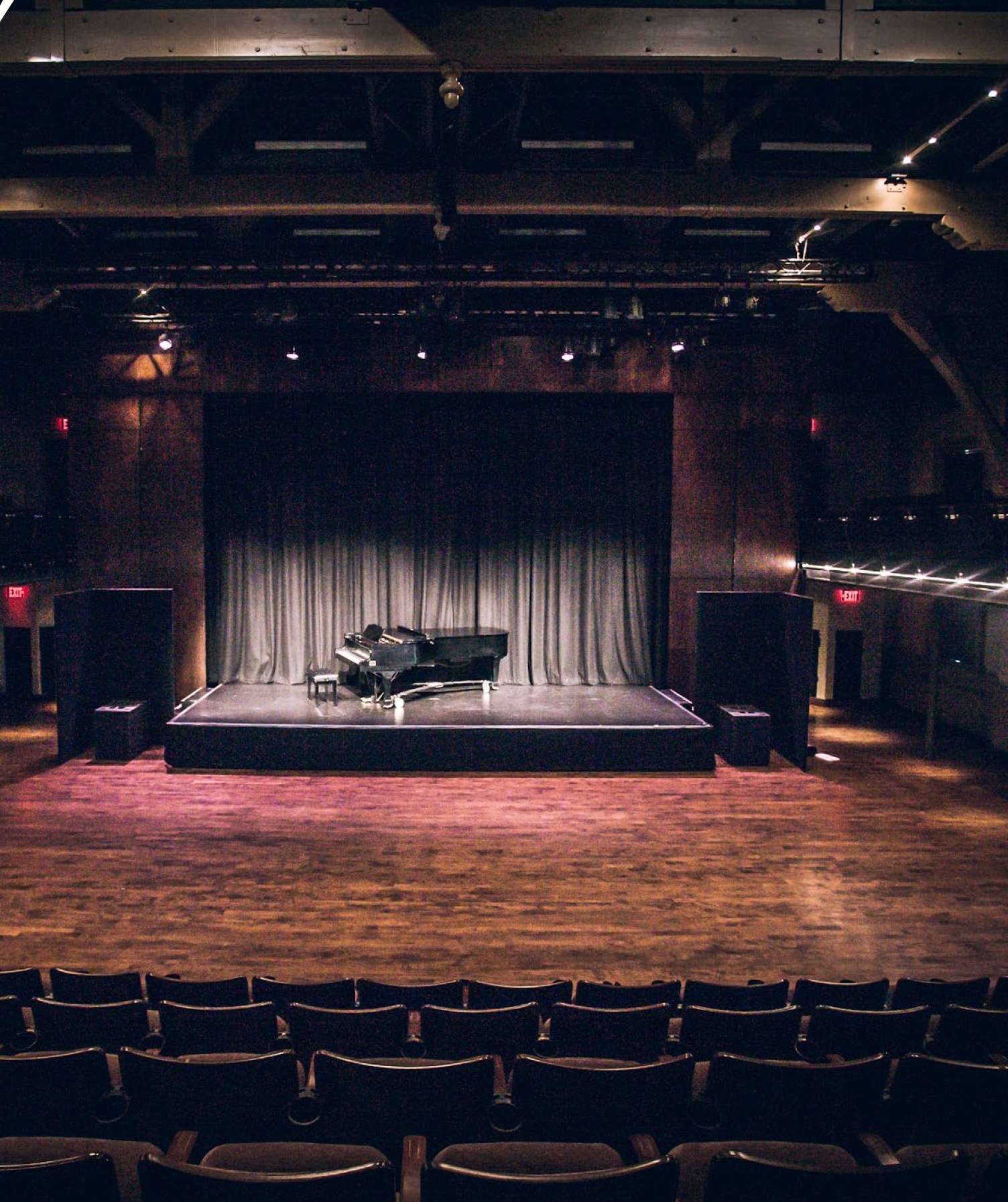

Staging

• Motorized stage, 16 ft deep × 24 ft wide; depth can extend to 14 ft depending on projection-screen use
• 6 × flats for wing space (can be fastened to the balcony by hardware)
• 6 × portable riser units, 4' × 8', 2 ft 6" height — non-skid black vinyl surface

Dance Floor

Rosco reversible (black / grey) — 5 panels, 63" × 40' each

Soft Goods

• Cyc — 32' 6" wide × 19' high, heavyweight muslin
• Scrim — 24' wide × 21' high, black sharkstooth
• Rear draw — black, 2 panels, 18' high × 20' wide each (50% fullness)
• Stage skirt — black

Piano

9 ft Kawai grand piano on its own riser, or rolled onto the motorized stage (the main wooden floor is not available for the piano)

Communications

• 1 × Clear-Com CS-702 two-channel main station
• 3 × single-channel belt packs with single-ear headsets
• 2 × dual-channel belt packs with single-ear headsets
• 1 × double-ear headset

Plans

Click a plan to open it full size.

Plan 1Plan 2Plan 3
